Magnetic lock WC, spindle 8mm

Valnes Magnetic Bathroom Lock E4102_50WC_CS - remarkably quiet lock.

• Installation drawing
• Drawing

Description

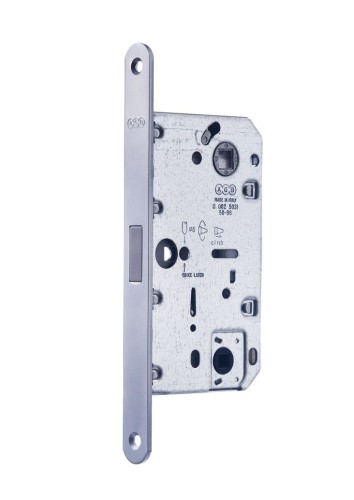

Magnetic flush-mounted lock with grey polyamide reversible latch, with finish satin chrome. The
bathroom lock blocks the latch also functioning as bolt but leaving the handle free. The lock features no protuberances on the forend, thanks to the latch is entirely retracted into the casing. Steel front (18 mm) with rounded edge, 50 mm backset (can also be ordered 60 mm
backset). Centre, 96 mm. Knob-plate, 6 mm. Steel lockcase with trough screw-holes for handle
assembly.

Application

The symmetrical, magnetic latch renders the lock right/left handed.

Mounting

Cut a slot and include a milled component on the panel. Fix the lock with two screws (3,5x20 mm).
